MODEL HD-CD 3025
Springless Chain-Drive Rubber Door
BrochureProduct Data SheetArch SpecsShop DrawingsWarranty
Demanding high traffic door openings are no match for the HD-CD 3025 high-performance door system. A springless drive significantly increases the volume this door can handle, and as a result, reduces the amount of required maintenance.
A high-performance helical gearhead operator and chain drive open the door at up to 24 inches per second, and the drive system is controlled by a programmable PLC and variable frequency drive with soft start and soft stop that provides smooth, quiet operation for reduced wear-and-tear and long service life. This versatile PLC controller allows for easy addition of a variety of activation and safety devices often required in high traffic environments.
Product Highlights
| Feature | Details | Rating |
|---|---|---|
| High Speed | Opening speed: Up to 24" per second*Opening time: 6.0 seconds* | |
| Low Maintenance | Springless, quick reset, withstands harsh environments | |
| Impactability | Break-away (quick reset/repair) | |
| Max/Min dimensions | 6'-0" up to 30'-0" wide6'-0" up to 30'-0" high | Not Applicable |
| Warranty | 5 and 2 year - Limited lifetime on rubber curtain |
- *
based on optimal conditions, 12x12 door
Door Construction
The industry leader in innovative door technology

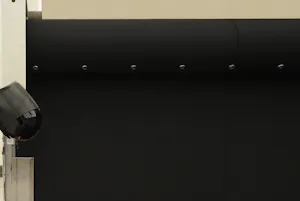

Rubber Curtain Material
Tough and reliable, Hörmann’s fiber-reinforced rubber curtain materials perform in the most extreme industrial environments the likes of mining, composting, and waste management. It effectively contains odors, stands up to corrosive applications, and can withstand vehicle impact undamaged, as the door is easily reset and functioning again within minutes.
Product Features
NEWGEN® aluminum guides with integrated light curtain
The patented NEWGEN® guide has been a key element of Hörmann’s rubber door rugged reliability for the past two decades. Extruded aluminum guides ensure consistent curtain release when the door is impacted while significantly reducing reset time and cost since no guide gap maintenance is required.
The aluminum guides include an integrated channel for our new 92 inch high monitored light curtains. This ensures safe, consistent operation, and protects the light curtains from damage.
Aluminum pivoting bottom bar for easy reset after an impact
Hörmann’s patented pivoting aluminum bottom bar is featured on the full-line of new HD SERIES doors. This innovative and aesthetically pleasing design performs dependably in all types of environments, including those with high wind, without the need for a traditional wind bar.
Galvanized Mounting Angles
The new HD SERIES door galvanized steel mounting angles are light and easy to install and are a strong backbone for our rubber doors.
Low maintenance drive system with variable frequency drive
Increasingly, end users are looking for the reliability and minimial maintenance designs that a Hörmann door system offers.
The HD SERIES Chain-Drive models uses a multi-function capacity PLC (programmable logic controller) control box with an extremely durable helical gearhead operator. This means a long life in high-cycle applications, low maintenance, fully supported by the Hörmann Service Support App.
Colors
Unbeatable Warranty
A chain-drive, springless design enables us to include an exciting warranty, ensuring dependable, maintenance-free operation that progressive companies desire. Competitive models have springs with a 20,000 cycle capability as standard, and higher cycle springs are optional add-ons.
This model comes with:
- Limited lifetime warranty on the rubber curtain.
- 5 years or 1,000,000 cycles on the operator.
- 2 years on all other mechanical and electrical components.
