HD-CD 2530
Low Headroom Parking Door
BrochureProduct Data SheetArch SpecsShop DrawingsWarranty
The springless, chain drive HD-CD 2530 is designed for parking garages where extremely reliable, high-cycle operation is a must; all the same dependable HD Series features plus a low headroom design are wrapped into one.
Made for door openings up to 25 feet wide x 10 feet high, the HD-CD 2530 requires just 13 inches of headroom and has a fast opening speed of up to 30 inches per second. An innovative new endplate design eliminates the need for a traveling wind bar, and a truss-free design is lighter for an easier installation. Like all the new HD SERIES models, the HD-CD 2530 features engineered galvanized steel mounting angles that are lightweight and easy to install, patented aluminum NEWGEN guide tracks with integrated light curtains, and aluminum pivoting bottom bar that withstands windy environments and is easily reset after impact.
For an added level of visibility and safety, our LED Lite-Advance door monitoring system, which is daylight visible with red / green light signals, is included as standard equipment in all HD SERIES door models.
Product Highlights
| Feature | Details | Rating |
|---|---|---|
| High Speed | Opening speed: Up to 30" per second* Opening time: 3.52 seconds* | |
| Low Maintenance | Springless, quick reset, withstands harsh environments | |
| Impactability | Break-away (quick reset/repair) | |
| Max/Min dimensions | 7'-0" up to 25'-0" wide 6'-0" up to 10'-0" high (low headroom 13") | Not Applicable |
| Warranty | 5 and 2 year - Limited lifetime on rubber curtain |
- *
Based on optimal conditions, 12x12 door
Door Construction
The industry leader in innovative door technology

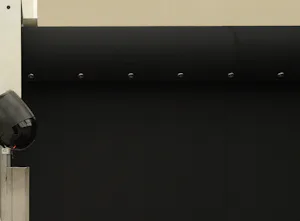

Rubber Curtain Material
Tough and reliable, Hörmann’s fiber-reinforced rubber curtain materials perform in the most extreme industrial environments the likes of mining, composting, and waste management. It effectively contains odors, stands up to corrosive applications, and can withstand vehicle impact undamaged, as the door is easily reset and functioning again within minutes.
Product Features
NEWGEN® aluminum guides with integrated light curtain
The patented NEWGEN® guide has been a key element of Hörmann’s rubber door rugged reliability in the past two decades. The extruded aluminum NEWGEN® guides ensure consistent curtain release when the door is impacted while significantly reducing reset time and cost since no guide gap maintenance is required.
The aluminum guides include an integrated channel for our new 92 inch tall monitored light curtains. This ensures safe, consistent operation and protects the light curtains from damage.
Aluminum pivoting bottom bar for easy reset after an impact
Hörmann’s patented pivoting aluminum bottom bar is featured on the full line of new HD SERIES doors providing innovative, aesthetically pleasing design and high-performance in all types of applications including high wind applications without the need for a traditional wind bar.
Galvanized Mounting Angles
Galvanized steel mounting angles are the backbone to the heavy duty rubber door. The new HD SERIES door mounting angles are light and easy to install, and by clever design are effective in providing a strong backbone for our rubber doors.
Low maintenance drive system with variable frequency drive
Increasingly, end users are looking for the reliability and low maintenance that a Hörmann door system brings to high-performance doors
The HD SERIES Chain Drive models uses a multi-function capacity PLC (programmable logic controller) control box with an extremely durable helical gearhead operator. This means a long life in high-cycle applications, low maintenance, fully supported by the Hörmann Service Support App.
Color Options - Rubber
Unbeatable Warranty
A chain-drive, springless design enables us to include an exciting warranty, ensuring dependable, maintenance-free operation that progressive companies desire. Competitive models have springs with a 20,000 cycle capability as standard, and higher cycle springs are optional add-ons.
This model comes with:
- Limited lifetime warranty on the rubber curtain.
- 2 years or 1,000,000 cycles on the operator
- 2 years on all other mechanical and electrical components.
