Control Boxes

Customizable control for all our high performance doors

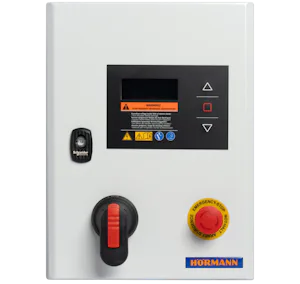

Control box for high performance industrial doors - Smart Start NXT NEMA 4

Smart Start™ NXT NEMA 4

UL control box in steel housing

Standard: 3-phase, 208 to 575 V
Optional: 1-phase

Rigid / Fabric Manual Rubber / CHILLFAST Manual Manual (Retrofit)

Compatible models:

SC 1400 SEL¹⁹
SC 1400¹⁹ Clean-Master 20 Pa
SC 1400¹⁹ Cool-Master
SC 1400¹⁹ Food-Master
SM 1600 L¹⁹
SM 1600 XL¹⁹
SM 2600 L (1-phase N/A)
SM 4600 L (1-phase N/A)
SG 5000 (1-ph N/A on Model LP)
TurboLux
Iso Speed Cold
CHILLFAST (1-phase N/A)
HD-CD 2530 (1-phase N/A)
HD-HD 2565 (1-phase N/A)
HD-DD 3065 (1-phase N/A)
HD-DD 2555 (1-phase N/A)

Control box for high performance industrial doors - Smart Start NXT NEMA 4

Smart Start™ NXT NEMA 4

UL control box in steel housing

(Pre-March 2024)

Standard: 3-phase, 208 to 575 V
Optional: 1-phase

Manual (Pre-March 2024) Manual (Retrofit)

Compatible models:

SC 1400 SEL¹⁹
SC 1400¹⁹ Clean-Master 20 Pa
SC 1400¹⁹ Cool-Master
SC 1400¹⁹ Food-Master
SC 1500 Compact
SM 1600 L¹⁹
SM 1600 XL¹⁹
SM 2600 L (1-phase N/A)
SM 4600 L (1-phase N/A)
SG 5000 (1-ph N/A on Model LP)
TurboLux
SR 9000 L
Iso Speed Cold

Control box for high performance industrial doors - XL Smart Start NXT NEMA 4

XL Smart Start™ NXT NEMA 4X

UL control box in steel housing

Standard: 3-phase, 208 to 575 V
Optional: 1-phase

For applications that require heat.

Compatible models:

SC 1400 SEL¹⁹
SC 1400¹⁹ Clean-Master 20 Pa
SC 1400¹⁹ Cool-Master
SC 1400¹⁹ Food-Master
SC 1500 Compact
SM 1600 L¹⁹
SM 1600 XL¹⁹
SM 2600 L (1-phase N/A)
SM 4600 L (1-phase N/A)
SG 5000 (1-ph N/A on Model LP)
SR 9000 L
CHILLFAST (1-phase N/A)
Iso Speed Cold
HD-HD 2565(1-phase N/A)
HD-DD 3065 (1-phase N/A)
HD-DD 2555 (1-phase N/A)

* Not available in Canada
1-phase, 230 V
Manual Manual (Retrofit)
Compatible models:
Standard: Speed-Master ® 1600 L 19 Eco
Consult factory for these models:
SC 1400 SEL19 SC 1400 MP SC...

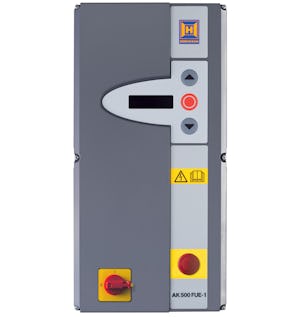

HFCB 1-phase non-UL

Non-UL control box in plastic housing

* Not available in Canada

1-phase, 230 V

Manual Manual (Retrofit)

Compatible models:

Standard: Speed-Master ® 1600 L ¹⁹ Eco

Consult factory for these models:

SC 1400 SEL¹⁹
SC 1400 MP
SC 1400¹⁹ Clean-Master 20 Pa
SC 1400¹⁹ Cool-Master
SC 1400¹⁹ Food-Master
SC 1500 Compact
SM 1600 L¹⁹ (up to 10 x 10)
SG 5000 (N/A on Model LP)
SR 9000 L

* Not available in Canada
1-phase, 230 V
Automatic operation upon loss of power.  Only available with HFCB Non-UL control box.
Manual
Optional on:
SC 1400 SEL19 SC 1400 MP SC 140019...

UPS Emergency Battery Pack

Non-UL control box in plastic housing

* Not available in Canada

1-phase, 230 V

Automatic operation upon loss of power.
Only available with HFCB Non-UL control box.

Optional on:

SC 1400 SEL¹⁹
SC 1400 MP
SC 1400¹⁹ Clean-Master 20 Pa
SC 1400¹⁹ Cool-Master
SC 1400¹⁹ Food-Master
SM 1600 L¹⁹ (up to 10 x 10)
SG 5000 (N/A on Model LP)
SR 9000 L

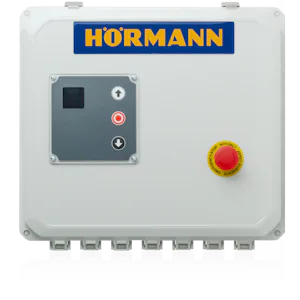

DC 8010

DC 8010

DC control box in plastic housing

DC, 220V / 460V / 575V

Compatible models:

SR 9500 LS

External 24 VDC

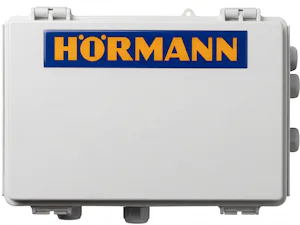

External 24 V DC Power Supply

Overload power supply for doors with several accessories

Compatible models:

All Hörmann High Performance Doors

NEMA 4 (IP66)

NEMA 4 (IP66) Relay

Powder coated cabinet

Standard: 3-phase, 208 to 575 V

Compatible models:

HD-SD 3020
HD-SD 3050 (optional)

NEMA 4 (IP66)

NEMA 4 (IP66) PLC

Powder coated cabinet

Standard: 3-phase, 208 to 575 V
(208 to 240 V can be 1-phase, contact factory)

Compatible models:

HD-CD 3025
HD-SD 3050

Standard: 3-phase 208 V to 575 V
Controls are integral with operator
Manual
Compatible models:
HD-SD 3020

NEMA 1 (IP 10) Operator Mounted Controls

Powder coated enclosure

Standard: 3-phase 208 V to 575 V

Controls are integral with operator

Compatible models:

HD-SD 3020
